Automatic Secondary Packaging System
Automatic Secondary Packaging System
Time:2022-02-09 10:05:19 View Count:

Automatic Secondary Packaging System

  • Palletizer gantry robot

    quality Automatic Secondary Packaging System Service

    Gantry palletizer is used in beer, food and beverage industry, chemical industry, etc. to stack all kinds of bottles, cans and bags. Large production capacity, suitable for a variety of pallets and boxes, easy to adjust. The production line transformation only needs to modify the software program, and it is convenient to switch the stack type with one key and change the product. Suitable for palletizing carton and heat shrinkable film.

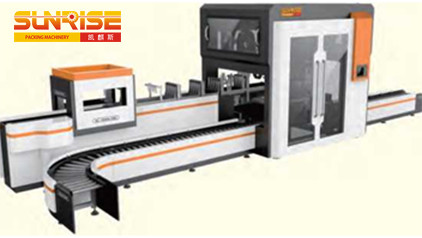

  • Pick and Place Case Packer

    quality Automatic Secondary Packaging System Service

    Grab type packing machine is a packing machine designed and produced by our company, which is operated by pneumatic and electric. Its advantages are compact structure, beautiful appearance, low energy consumption, stable operation and convenient operation. The driving device is symmetrical double rocker arm, which is driven by Japanese Mitsubishi servo motor or three-phase asynchronous motor and runs smoothly.


  • WRAP AROUND CASE PACKER

    quality Automatic Secondary Packaging System Service

    This machine has a mesh belt conveyor to arrange the products in order, which is divided into six Z rows, five rows or four rows (changed according to different packaging methods). In addition, the paper is also stacked on one side. The principle of machine arm is used to pull the paper down to the front, and the roller is used to push it. When the paper and the product reach the positioning point, the machine push mechanism is used to swing left and right to make the product fall on the paper, There is a group of cylinders under the paper and a suction cup to pull down the paper and products for forming. After forming, the paper and products are transported forward by chain drive, and the forward action is done again. After the box is formed, the glue spraying and bonding action is done for each forward transport, and the paper and products are pushed forward to the conveyor, and then the stacking pallet action is done. The swing arm is used to assist the bottle feeding of the can products, and the automatic bottle separator is used to assist the bottle feeding of the plastic bottles.


  • Drink Chain Conveyor

    quality Automatic Secondary Packaging System Service

    Our company's production line layout fully considers the relationship between customer investment and production line efficiency. On the basis of introducing foreign technology, we can well meet the requirements of production line transportation. The system adopts foreign advanced technology, the mechanical structure is a new design, and most components are formed by stamping or bending, which has the advantages of good rigidity, light weight and good interchangeability. Reliable operation, convenient maintenance, suitable for conveying diameter. 40 ~ 110 mm can (bottle). The non pressure conveying system, relying on real-time speed signal acquisition and feedback and automatic differential control system, can realize the tank (bottle) on the conveyor belt smoothly changing from multi column to single column in the movement state, without mutual extrusion phenomenon. The electrical control system adopts PLC to control the whole operation of the conveying buffer system of the solid tank (bottle), which can automatically realize the functions of acceleration and deceleration of the running speed and automatic buffer.

  • Basket loading and unloading systems

    quality Automatic Secondary Packaging System Service

    Basket loading and unloading systems is the guarantee to realize the continuous and efficient work of the whole post sterilization system, which is mainly composed of automatic cage loading system, trolley system and automatic cage unloading system. This system is mainly used for automatic loading and unloading cage operation of pop can, PE bottle and glass bottled beverage before and after sterilization. The simple steps can be divided into loading cage action, trolley movement and in and out of kettle action, unloading cage action. The whole process of action are realized by automation, such as: automatic push can into the basket, automatic lifting, automatic take-off and put clapboard, automatic cage basket turnover, automatic in and out of the kettle, etc. The whole set of actions can realize automatic assembly line operation, save manpower and greatly improve production efficiency.


  • Palletizer for empty cans

    quality Automatic Secondary Packaging System Service

    Main structural features: The main body of the conveying stack is welded with high-quality carbon steel pipe, with stable structure, 3 stacks of space reserved for standard configuration, and the bearing capacity can reach 3.2T; The guiding structure is designed for the main stacking station to ensure the smooth entry of empty can stacks. During the whole stacking, the transverse deformation of the whole stacking can be restored and corrected to prevent the can falling and squeezing during the lifting process; The lifting power motor is controlled by frequency conversion, which can be automatically locked in case of accidental power failure, so as to ensure the safety of personnel and protect the tank stack from damage; It has the characteristics of stable structure, good loading capacity and high space utilization; The photoelectric sensor is installed on the top to detect and position, improve the accuracy of height control. When unloading the tank, the action is completed by the encircling structure, which limits the external size of the whole layer of tank, and then drives the synchronous belt transmission by the self-made motor controlled by frequency conversion, so as to ensure that there will be no extrusion deformation or toppling jam when the tank moves with online degree of freedom.


  • Palletizing and Depalletizing Robot Solutions


    The robot automatic palletizing system includes: box conveying system, box finishing system, robot fixture, robot system, tray conveying system, tray buffer system, etc. The product cartons are transported to the box finishing system by the box conveying system after the automatic sealing machine or film wrapping machine. After finishing and arranging, the products are captured by the robot through the fixture. The captured products are stacked layer by layer according to the product stacking requirements. After stacking, the pallets are transported to the forklift receiving point by the pallet conveying system, waiting for receiving or docking with the automatic stereoscopic warehouse. According to the production speed requirements of the system, the empty tray automatic conveying station can be configured separately, and the robot can also be used to supply the palletizing plate.


HIGH PERFORMANCE FOOD AND BEVERAGE PACKAGING MACHINERY

Sunrise packaging products are divided into three series: palletizing, paper film packaging, and loading and unloading boxes. Each series covers a variety of products, widely used in beverage, beer, food, chemical, medical and other industries. Secondary packaging of various bottles, cans and barreled water, etc., and can be used in conjunction with automatic filling production lines. Packaging products have the advantages of high degree of automation, reliable control, simple adjustment, and convenient operation and maintenance. In order to further expand the market, we have been committed to the development of new products. Now we have developed a new domestic leading technology product-spider hand robot, which has expanded the wide application of packaging products in small food, electronics, medical and other industries.


The operating efficiency of the entire production line depends on the rationality of the conveying line and related equipment in addition to the key equipment such as blowing, filling, and labeling. Huihe's back-end packaging system fully considers the above factors and pursues the best combination of the ratio of each part of the equipment.
Mainly include: bottle blank conveying, bottle cap conveying, empty bottle conveying, solid bottle conveying, solid box conveying, sleeve/labeling, boxing (film package), palletizing, etc.

product nameMaximum capacityApplicable bottle typeApplication field
Unloading bottle (tank) system48000BPHPET bottles, glass bottles, cansPET bottled water, tea, juice, functional drinks, carbonated drinks,
Glass bottles, cans, etc.
Solid bottle conveying system48000BPHPET bottles, glass bottles, cans
Inverted bottle sterilization system48000BPHPET bottles, glass bottles, cans
Spray cooling system48000BPHPET bottles, glass bottles, cans
Bottle warming machine48000BPHPET bottles, glass bottles, cans
Carton (film) package system80packs/minPET bottles, glass bottles, cans
Packing system60packs/minPET bottles, glass bottles, cans
Palletizing system80packs/minPET bottles, glass bottles, cans
